WS:D3 - Arista AVD: Architect, Validate, and Deploy

Build, deploy and test L3LS EVPN with Arista AVD

#!/usr/bin/env python3

__author__ = [
  "Petr Ankudinov (pa@), Senior Solutions Engineer",
  "Guillaume Mulocher (gmulocher@), Senior Solutions Engineer",
  "Patrick Prangl (pprangl@), Systems Engineer"
]

$ date +"%b %Y"
May 2025

Credits

  • Slides are created in Marp by Yuki Hattori
  • Why:
    • Easy to build and share, rich content
    • Also ask yourself why people are presenting in PowerPoint when it comes to automation event. Slides are just another form of Markdown content build by CI.
  • Check Marp awesome list and build your next slide deck in Marp!
  • Most images are from Pexels or generated by AI
  • 🌐 Wi-Fi & Connectivity
    • Network Name: AutoCon3
    • Password: PragueRocks!
  • Slack: ac3-ws-d3-arista

Scan QR code to access the slide deck.

Agenda

⏩ Start: 14:00

  • Arista AVD overview
  • How to create AVD environment and ATD Lab overview
  • 5 minutes intro to Makefile
  • Build and deploy dual DC EVPN
  • Services, endpoints and DCI
  • Day 2 provisioning

☕ Break: 15:45 - 16:15

  • CI with GitHub Actions and Pages
  • Network testing hour with ANTA

🛑 Stop: 18:00

What is AVD

  • AVD is an open-source project
  • AVD stands for "Architect, Validate, and Deploy"
  • Supported designs as of AVD 5.2:
    • L3LS EVPN / L2LS / MPLS / Campus
    • WAN AutoVPN/CV Pathfinder

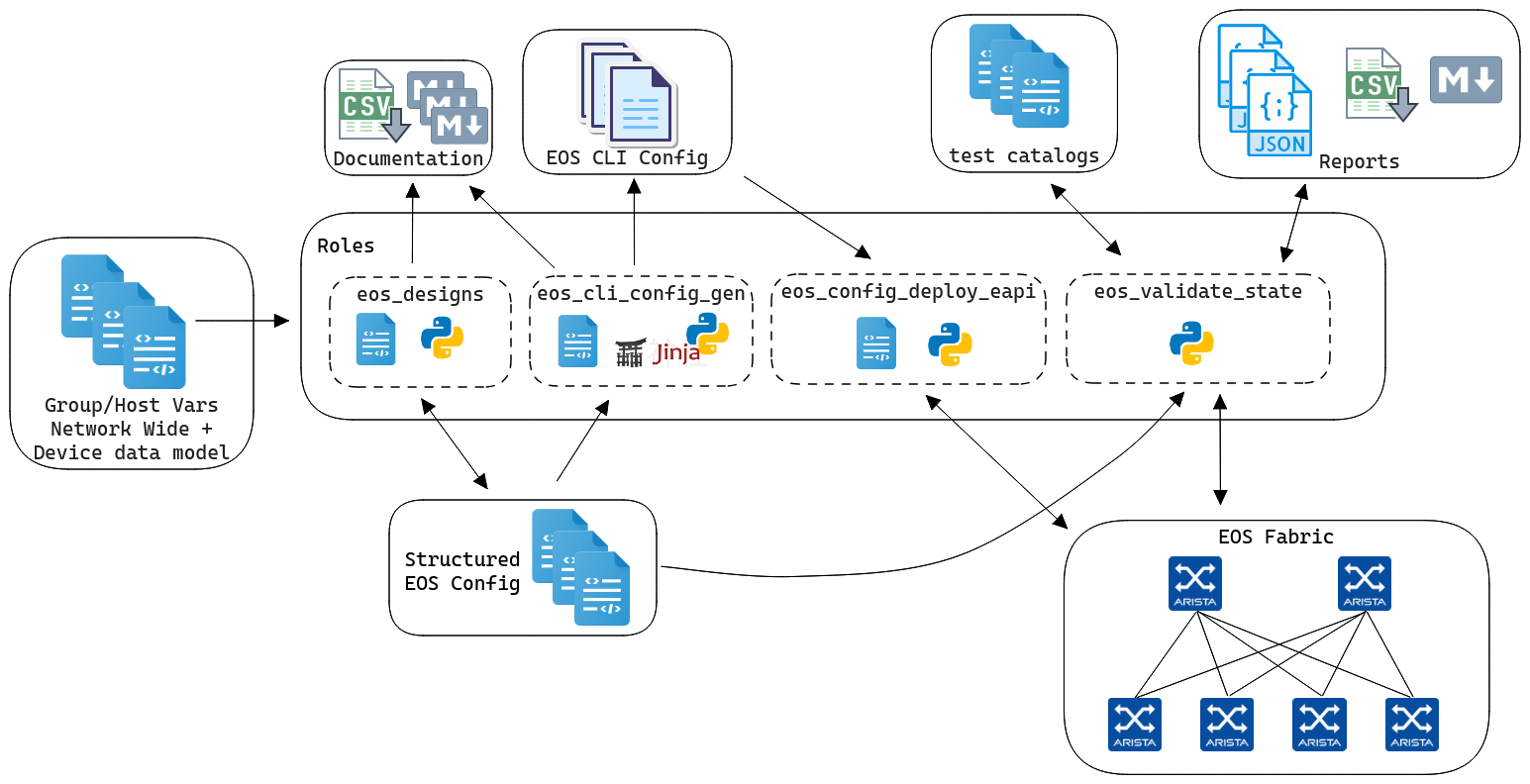

  • Roles:
    • arista.avd.eos_designs - abstracted to low level variables
    • arista.avd.cli_config_gen - parse templates to build plain text configs
    • arista.avd.cv_deploy - push configurations to Arista CloudVision Portal (replaced eos_config_deploy_cvp)
    • arista.avd.eos_config_deploy_eapi - push configs to switches directly. Based on arista.eos.eos_config. arista.eos is maintained by RedHat ⚠️
    • arista.avd.eos_validate_state - validate operational state of Arista EOS devices (with ANTA)

AVD is Open Source

  • AVD was started by Arista community and for Arista community
  • Open source means that you can use it for free and have full power as long as you take the responsibility of a power user:
    • Understand and troubleshoot
    • Be part of the community - share your feedback, open Github issues and even PRs

AVD commercial traits:

ATD (Arista Test Drive) Lab

While the lab is starting... ⏲️ Let's discuss how to create your own AVD environment.

Quiz: AVD / ATD / ACT / ACB / ABC - which one is not a valid Arista abbreviation. 😄

AVD Installation Options

  • Ansible CE (Community Edition)
    • free to use
    • check AVD docs for the installation manual
  • Ansible Automation Platform

PyAVD is the foundation ⚠️

# ansible-core will be installed as PyAVD requirement
pip install "pyavd[ansible]"
ansible-galaxy collection install arista.avd
# install community.general to support callback plugins, etc.
ansible-galaxy collection install community.general
  • ⚠️ PyAVD is not intended to be used directly
  • Ansible provides a lot of value, for ex. inventory management - use Ansible ⚠️
  • However PyAVD is the foundation that allows to solve a lot of Ansible shortcomings

Virtual Environment vs Containers

venv/pyenv 📦

  • Pro:
    • simple and lightweight
    • no special tools required
  • Breaks often. Troubleshooting complexity: average
  • How it breaks:
    • multiple Pythons
    • incorrect requirements installation
    • broken path, custom ansible.cfg, tweaks, etc.
    • ../../../<ansible-collection> 🤦 🙈

Containers 🐳

  • Pro:
    • stable, portable
    • high level of isolation
  • Breaks rarely. Troubleshooting complexity: high
  • How it breaks:
    • permission issues 👑
    • broken Docker installation or host OS
    • tools can be "too heavy" for some users 🔨

Quickest AVD Test Possible

podman run --rm -it -w /home/avd ghcr.io/aristanetworks/avd/universal:python3.11-avd-v5.4.0 \
zsh -c "cp -r /home/avd/.ansible/collections/ansible_collections/arista/avd/examples/single-dc-l3ls/* .; ansible-playbook build.yml; cat intended/configs/dc1-leaf1a.cfg"

ATD environment is based on the Coder container

Check appendix for details about installing container engine.

Makefile

  • If you need a deeper dive into Makefile syntax and use case - the makefiletutorial.com is the best place to start. You'll be an expert in making Makefiles when you finish. 😎
  • Originally Makefiles were used by C/C++ developers to compile the code.
  • Makefiles have a few advantages that make them useful for other use cases:
    • They are simple.
    • They allow assigning a simple shortcut to complex actions.
    • They are available by default on most Linux distributions.
  • We are going to use Makefile to create shortcuts to simplify some operations.

Change Requirements

  • Once you clone the fork of ci-workshops-avd repo (see next slide for details):

    • Change your requirements.txt to install latest AVD and ANTA CLI
    anta[cli]==1.4.0
passlib
pyavd[ansible]==5.4.0
    • Change requirements.yml
    ---
collections:

  - name: arista.avd
    version: 5.4.0

  - name: arista.cvp
    version: 3.12.0

  - name: community.general
    version: 6.5.0

Let's Prepare The Lab Environment

# set LABPASSPHRASE env variable
export LABPASSPHRASE=`cat /home/coder/.config/code-server/config.yaml| grep "password:" | awk '{print $2}'`
echo "export LABPASSPHRASE=${LABPASSPHRASE}" >> ~/.zshrc
# clone the lab repository
cd /home/coder/project/labfiles
git clone https://github.com/<your-github-account-name>/ci-workshops-avd.git
cd ci-workshops-avd
# set Git user.name and user.email
git config --global user.name "FirstName LastName"
git config --global user.email "name@example.com"
# upgrade AVD version and requirements
pip3 config set global.break-system-packages true
pip3 config set global.disable-pip-version-check true
pip3 install -r requirements.txt
ansible-galaxy collection install -r requirements.yml
# check if installation is correct
ansible-galaxy collection list
# move to L3LS_EVPN directory
cd labs/L3LS_EVPN
# set initial lab configs
make preplab

Build and Deploy Fast Forward ⏩

Detailed walkthrough is available in the guide.

# build site1 and site2
make build-site-1 build-site-2
make deploy-site-1 deploy-site-2
# make a few checks
ssh arista@s1-leaf1
show ip bgp summary
show bgp evpn summary
  • Hint: to deploy both DCs you can add following shortcut to your Makefile
.PHONY: all
all: build-site-1 build-site-2 deploy-site-1 deploy-site-2

Add Services and Endpoints

  • Uncomment variables in SITE*_NETWORK_SERVICES.yml and SITE*_CONNECTED_ENDPOINTS.yml
  • Build and deploy new configs
  • Do some checks
show vlan brief
show ip interface brief
show run interface vxlan 1
show bgp evpn route-type imet
show port-channel dense
# ping host2 from host1
ping 10.20.20.100  # from s1-host1
ping 10.20.20.200  # from s2-host1

DCI

  • Uncomment l3_edge in global_vars/global_dc_vars.yml
  • Check sh ip bgp summary on s1-brdr1 and s2-brdr1
  • Enable EVPN gateway in sites/site_/group_vars/SITE_FABRIC.yml
  • Verify that all hosts can ping each other

Quiz: What is the purpose of EVPN gateway?

    - group: S1_BRDR
      bgp_as: 65103
      # evpn_gateway:
      #   evpn_l2:
      #     enabled: true
      #   evpn_l3:
      #     enabled: true
      #     inter_domain: true
      nodes:
        - name: s1-brdr1
          id: 5
          mgmt_ip: 192.168.0.100/24
          uplink_switch_interfaces: [ Ethernet7, Ethernet7 ]
          # evpn_gateway:
          #   remote_peers:
          #     - hostname: s2-brdr1
          #       bgp_as: 65203
          #       ip_address: 10.250.2.7
        - name: s1-brdr2
          id: 6
          mgmt_ip: 192.168.0.101/24
          uplink_switch_interfaces: [ Ethernet8, Ethernet8 ]
          # evpn_gateway:
          #   remote_peers:
          #     - hostname: s2-brdr2
          #       bgp_as: 65203
          #       ip_address: 10.250.2.8

Day 2 Ops, Git and CI

Add Banner and Syslog

  • Commit and push everything to your forked repo:
  • Github will ask you to authorize
  • Create a new branch: git switch -c banner-syslog
  • Add banner and syslog in global_vars/global_dc_vars.yml (commit and review after every change)
  • make build-site-1 build-site-2 (do NOT deploy!)
  • Push to upstream: git push --set-upstream origin banner-syslog
  • Create, review and merge a pull request. Use your own fork as target!
  • Now pull changes merged into your main branch: git pull
  • Delete banner-syslog branch: git branch -D banner-syslog
  • Deploy the change: make deploy-site-1 deploy-site-2
# commit and push
git add .
git commit -m 'clean up'
git push
git switch -c banner-syslog

# Login Banner
banners:
  motd: |
    You shall not pass. Unless you are authorized. Then you shall pass.
    EOF

# Syslog
logging:
  vrfs:
    - name: default
      source_interface: Management0
      hosts:
        - name: 10.200.0.108
        - name: 10.200.1.108

banner pr

CI/CD: Prepare GitHub Actions

  • Enable GitHub Actions on your fork
  • Set Actions secret called LABPASSPHRASE

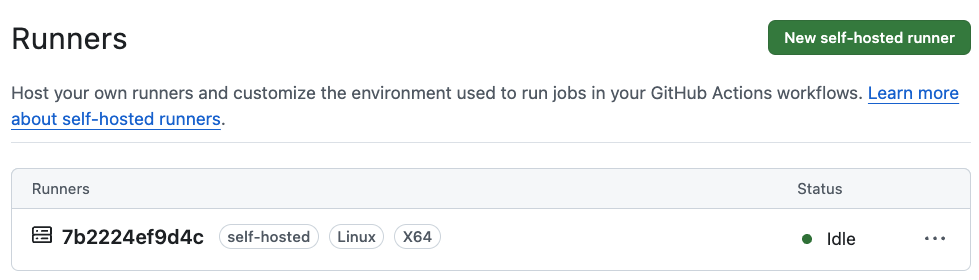

  • Follow GitHub instructions to add your own runner
  • Accept all default options
  • Start the runner

runner

Pre-Commit

  • Pre-commit helps to identify some common problems before someone will see your PR

  • Install pre-commit:

    pip3 install pre-commit
pre-commit install
# this last step is required as pre-commit will be looking for Python on your machine
sudo update-alternatives --install /usr/bin/python python /usr/bin/python3.11 20

  • Change files: path in .pre-commit-config.yml to labs/L3LS_EVPN...

  • Run it locally with pre-commit run -a or wait for the workflow to fail and fix errors.

    alt text

First CI Run

  • Create init-ci branch and update .github/workflows/dev.yml to match this slide:
  • Make sure that runs-on: self-hosted and path is updated to L3LS_EVPN
  • Add new VLAN and build new configs
  • Commit and push
  • Check the workflow status

Quiz: What is linter? Name at least one example.

name: Test the upcoming changes

on:
  push:
    branches-ignore:
      - main

jobs:
  dev:
    env:
      LABPASSPHRASE: ${{ secrets.LABPASSPHRASE }}
    timeout-minutes: 15
    runs-on: self-hosted
    steps:
      - name: Hi
        run: echo "Hello World!"

      - name: Checkout
        uses: actions/checkout@v4

      - name: Setup Python
        uses: actions/setup-python@v5

      - name: Install Python requirements
        run: pip3 install -r requirements.txt

      - name: Run pre-commit on files
        uses: pre-commit/action@v3.0.0

      - name: Check paths for sites/site_1
        uses: dorny/paths-filter@v3
        id: filter-site1
        with:
          filters: |
            workflows:
              - 'labs/L3LS_EVPN/sites/site_1/**'

      - name: Check paths for sites/site_2
        uses: dorny/paths-filter@v3
        id: filter-site2
        with:
          filters: |
            workflows:
              - 'labs/L3LS_EVPN/sites/site_2/**'

      - name: Install collections
        run: ansible-galaxy collection install -r requirements.yml
        if: steps.filter-site1.outputs.workflows == 'true' || steps.filter-site2.outputs.workflows == 'true'

      - name: Test configuration for site1
        run: make build-site-1
        working-directory: labs/L3LS_EVPN/
        if: steps.filter-site1.outputs.workflows == 'true'

      - name: Test configuration for site2
        run: make build-site-2
        working-directory: labs/L3LS_EVPN/
        if: steps.filter-site2.outputs.workflows == 'true'

Prod CI Run

  • Create and review a PR
  • Use deploy-site-1 and deploy-site-2, not CVP!
  • Double-check that runs-on: self-hosted is present.
  • Add new VLAN and build new configs
  • Commit and push
  • Merge to the main branch
  • Check the workflow status
  • Check that VLAN was provisioned
name: Deploy updates

on:
  push:
    branches:
      - main

jobs:
  deploy-prod:
    env:
      LABPASSPHRASE: ${{ secrets.LABPASSPHRASE }}
    timeout-minutes: 15
    runs-on: self-hosted
    steps:
      - name: Hi
        run: echo "Hello World!"

      - name: Checkout
        uses: actions/checkout@v4

      - name: Setup Python
        uses: actions/setup-python@v5

      - name: Install Python requirements
        run: pip3 install -r requirements.txt

      - name: Run pre-commit on files
        uses: pre-commit/action@v3.0.0

      - name: Check paths for sites/site_1
        uses: dorny/paths-filter@v3
        id: filter-site1
        with:
          filters: |
            workflows:
              - 'labs/L3LS_EVPN/sites/site_1/**'

      - name: Check paths for sites/site_2
        uses: dorny/paths-filter@v3
        id: filter-site2
        with:
          filters: |
            workflows:
              - 'labs/L3LS_EVPN/sites/site_2/**'

      - name: Install collections
        run: ansible-galaxy collection install -r requirements.yml
        if: steps.filter-site1.outputs.workflows == 'true' || steps.filter-site2.outputs.workflows == 'true'

      - name: Build and deploy site1
        run: make build-site-1 deploy-site-1
        working-directory: labs/L3LS_EVPN/
        if: steps.filter-site1.outputs.workflows == 'true'

      - name: Build and deploy site2
        run: make build-site-2 deploy-site-2
        working-directory: labs/L3LS_EVPN/
        if: steps.filter-site2.outputs.workflows == 'true'

Publish AVD Docs on GitHub Pages

  • Go to Github Pages settings and select Source > GitHub Actions
  • Confirm that GitHub Actions have write permissions
  • Create docs/index.md in the root of your repository
  • Create a very simple mkdocs.yml in the root of your repository:
---
site_name: AVD docs

theme:
  name: material

nav:
  - Home:
    - Site 1 Fabric Docs: site_1/fabric/SITE1_FABRIC-documentation.md
    - Site 2 Fabric Docs: site_2/fabric/SITE2_FABRIC-documentation.md
  • Add .github/workflows/publish-pages.yml
  • Push the change to the main branch and check that docs are deployed
---
name: publish AVD docs
on:
  push:
    branches: [ 'main' ]
    paths:
    - labs/L3LS_EVPN/sites/site_1/documentation/**
    - labs/L3LS_EVPN/sites/site_2/documentation/**
    - mkdocs.yml
    - .github/workflows/publish-pages.yml
permissions:
  contents: write
  pages: write
  id-token: write
jobs:
  build:
    runs-on: ubuntu-22.04
    steps:

      - name: Checkout code ✅
        uses: actions/checkout@v4

      - name: move AVD docs ✂
        run: |
          mkdir -p docs/site_1
          mkdir -p docs/site_2
          cp -r labs/L3LS_EVPN/sites/site_1/documentation/* docs/site_1
          cp -r labs/L3LS_EVPN/sites/site_2/documentation/* docs/site_2

      - name: Setup Python3 🐍
        uses: actions/setup-python@v5
        with:
          python-version: "3.11"

      - name: Build MkDocs Site
        run: |
          pip install mkdocs-material
          mkdocs build

      - name: Setup Pages 📖
        uses: actions/configure-pages@v5

      - name: Upload artifact 🔼
        uses: actions/upload-pages-artifact@v3
        with:
          path: ./site/

      - name: Deploy to GitHub Pages 🚀
        id: deployment
        uses: actions/deploy-pages@v4

Network testing

What is ANTA? 🐜

  • Arista Network Test Automation

    • Open-Source project developed under Apache License
    • Driven by AS, SE and Solution Engineer community inside Arista
    • 180+ built-in tests

  • Use cases

    • Automate NRFU (Network Ready For Use) test on a pre-production network
    • Automate tests on a live network (periodically or on demand)
    • Execute tests as part of a CI pipeline

  • Python only

    • No mandatory cumbersome framework
    • Easier troubleshooting
    • Fast and efficient using asyncio
    • Well documented at anta.arista.com

  • Network testing automation benefits

    • Abandon manual actions during network testing
      • ⏱️ More efficient: minutes vs hours
      • 📈 Increased coverage and completeness of tests
      • 🎯 100% accurate and precise

  • Generate test reports automatically for documentation and compliance

  • Reuse validated tests accelerate test automation

  • Reduce the cost in certifying a new NOS version on the network

Quiz: Explain the advantage of using asyncio for network bound IO operations.

ANTA CLI

  • We are going to test site-1 only for simplicity

  • Test scenario will be adjusted to match L3LS EVPN case

  • Copy the test catalogs and the site-1 inventory

    cd /home/coder/project/labfiles/ci-workshops-avd/labs/L3LS_EVPN
# Copy the test inventory with IP addresses
cp ~/project/labfiles/ci-workshops-avd/labs/NET_TESTING/sites/site_1/inventory.yml sites/site_1
# Copy the test catalog
cp -r ~/project/labfiles/ci-workshops-avd/labs/NET_TESTING/tests .

  • Generate the ANTA inventory from the AVD inventory

    anta get from-ansible --ansible-inventory sites/site_1/inventory.yml \
--ansible-group SITE1_FABRIC --output sites/site_1/anta_inventory.yml --overwrite

ANTA Cheatsheet

cd /home/coder/project/labfiles/ci-workshops-avd/labs/L3LS_EVPN
# Run the tests
anta nrfu  -u arista -p ${LABPASSPHRASE} -i sites/site_1/anta_inventory.yml -c tests/all.yml table
# Export variables
export ANTA_USERNAME=arista
export ANTA_PASSWORD=$LABPASSPHRASE
export ANTA_CATALOG=tests/all.yml
export ANTA_INVENTORY=sites/site_1/anta_inventory.yml
# Run again
anta nrfu  table
# Update catalog in tests/all.yml with content of catalog
# run again
anta nrfu table

anta.tests.system:
  - VerifyUptime:
      minimum: 600
anta.tests.hardware:
  # Verifies the status of power supply fans and all fan trays.
  - VerifyEnvironmentCooling:
      states:
        - ok
anta.tests.software:
  # Verifies the device is running one of the allowed TerminAttr version.
  - VerifyTerminAttrVersion:
      versions:
        - v1.32.0
        - v1.35.0

ANTA Inventory Tags

anta_inventory:
  hosts:
  - host: 192.168.0.10
    name: s1-spine1
    tags: ['spine']
  - host: 192.168.0.11
    name: s1-spine2
    tags: ['spine']
  - host: 192.168.0.12
    name: s1-leaf1
    tags: ['leaf']
  - host: 192.168.0.13
    name: s1-leaf2
    tags: ['leaf']
  - host: 192.168.0.14
    name: s1-leaf3
    tags: ['leaf']
  - host: 192.168.0.15
    name: s1-leaf4
    tags: ['leaf']
  - host: 192.168.0.100
    name: s1-brdr1
    tags: ['border']
  - host: 192.168.0.101
    name: s1-brdr2
    tags: ['border']

anta nrfu --hide skipped table
anta nrfu table --group-by device
anta nrfu --tags leaf table
anta nrfu --tags leaf table --group-by device
anta nrfu --tags leaf,spine table

anta.tests.system:
  - VerifyUptime:
      minimum: 600

anta.tests.hardware:
  # Verifies the status of power supply fans and all fan trays.
  - VerifyEnvironmentCooling:
      states:
        - ok

anta.tests.software:
  # Verifies the device is running one of the allowed TerminAttr version.
  - VerifyTerminAttrVersion:
      versions:
        - v1.32.0
        - v1.35.0

anta.tests.routing:
  generic:
    - VerifyRoutingProtocolModel:
        model: multi-agent
  bgp:
    - VerifyBGPPeerCount:
        address_families:
          - afi: "evpn"
            num_peers: 2
          - afi: "ipv4"
            safi: "unicast"
            vrf: "OVERLAY"
            num_peers: 1
          - afi: "ipv4"
            safi: "unicast"
            vrf: "default"
            num_peers: 3
        filters:
          tags: ["leaf"]
    - VerifyBGPPeerCount:
        address_families:
          - afi: "evpn"
            num_peers: 6
          - afi: "ipv4"
            safi: "unicast"
            vrf: "default"
            num_peers: 6
        filters:
          tags: ["spine"]
    - VerifyBGPPeerCount:
        address_families:
          - afi: "evpn"
            num_peers: 2
          - afi: "ipv4"
            safi: "unicast"
            vrf: "OVERLAY"
            num_peers: 1
          - afi: "ipv4"
            safi: "unicast"
            vrf: "default"
            num_peers: 3
        filters:
          tags: ["border"]

ANTA integration in AVD

  • 🔨 Crafting a test catalog and inventory by hand can be quite challenging for a big fabric

  • 💡 Use the data provided by AVD to automatically create a base catalog based on our intended design!

  • Starting AVD 5.0, eos_validate_state role is running using ANTA as backend:

    • The structured_config generated by eos_designs is used to derive the list of tests to run against each device and to build a catalog per device
    • The catalog is handed over to ANTA

  • A new Ansible role anta_runner is being developed for a better ANTA-to-AVD integration. Already available as preview starting AVD 5.3.0

AVD anta_runner

  • Update the Makefile with the following entry:
.PHONY: validate-site-1
validate-site-1: ## Validate network state
	ansible-playbook playbooks/validate.yml -i sites/site_1/inventory.yml -e "target_hosts=SITE1_FABRIC"
  • Add the following playbook validate.yml in your playbook directory. Note that we are using the new anta_runner role instead of eos_validate_state.
---
- name: Validate Network State
  hosts: "{{ target_hosts }}"
  connection: httpapi
  gather_facts: false
  tasks:
    - name: validate states on EOS devices
      ansible.builtin.import_role:
        name: arista.avd.anta_runner

Testing in CI

  • Update .github/workflows/prod.yml to match this slide:
  • Make sure that runs-on: self-hosted and path is updated to L3LS_EVPN
  • Create and merge the pull request on Github
name: Deploy updates
on:
  push:
    branches:
      - main
jobs:
  deploy-prod:
    env:
      LABPASSPHRASE: ${{ secrets.LABPASSPHRASE }}
    timeout-minutes: 15
    runs-on: self-hosted
    steps:
      - name: Hi
        run: echo "Hello World!"
      - name: Checkout
        uses: actions/checkout@v4
      [...]
      - name: Test site1
        run: make validate-site-1
        working-directory: labs/L3LS_EVPN/
        if: steps.filter-site1.outputs.workflows == 'true'
      - name: Expose Site 1 test report in Github Action
        run: cat labs/L3LS_EVPN/sites/site_1/anta/reports/anta_report.md >> $GITHUB_STEP_SUMMARY
        if: steps.filter-site1.outputs.workflows == 'true'

Q&A

- One more slide!
+ No more slides.

git commit -m "The END!"

AVD Lab Environment: Options

  • Linux

    • Docker CE

    • Install directly

      pip install "pyavd[ansible]"
ansible-galaxy collection install arista.avd

  • Windows

    • WSL2 + Docker CE

  • MacOS

    • Podman

⚠️ Use a well maintained and healthy machine!

Linux: Install Docker CE

The install process was tested on Ubuntu LTS

  1. Install Docker on the host. You can used one-liner script for that. Check Docker documentation for details.
  2. Add your user to the docker group.
  3. Logout and login again to apply the changes.
  4. Check the Docker version and run hello-world container to test functionality.
  5. You must be able to run docker commands without sudo if the installation was succesful.
# install Docker
sudo curl -fsSL https://get.docker.com | sh
# add user to the docker group
sudo usermod -aG docker ${USER}
# test docker
docker --version
docker run hello-world


Windows: Install WSL2 + img

  • Install WSL2
    • Check if default Ubuntu distribution is installed
    • Windows will ask to restart the PC 😉
  • Install VSCode if not yet installed
  • Install remote development extension on VSCode: ms-vscode-remote.vscode-remote-extensionpack
  • On the first run VSCode will suggest to install Docker in WSL - accept

You can install Docker CE on WSL2 machine directly, but VSCode is a better option

MacOS: Install podman Desktop

  • Check installation docs
  • Download Podman Desktop here
  • Once Podman Desktop is installed - create Podman machine
    • rootful Podman machine❗ preferred for a lab
  • Check podman run hello
  • Set alias docker=podman
    • future slides will be referring to docker assuming this alias

Do not add page number on this slide

Add footer starting from this slide

Add footer starting from this slide
